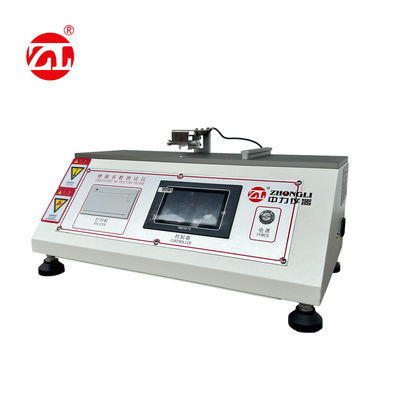

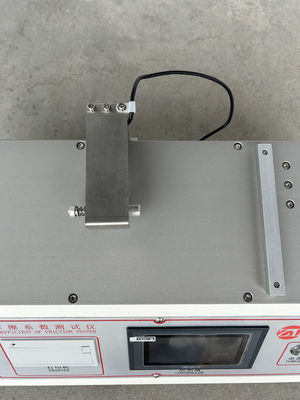

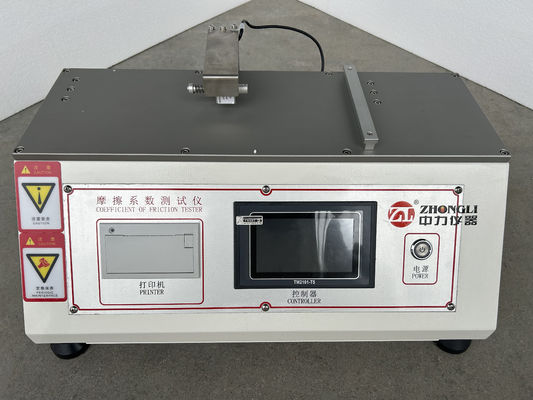

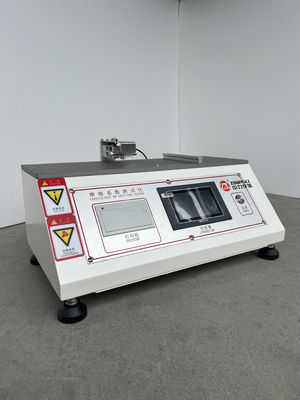

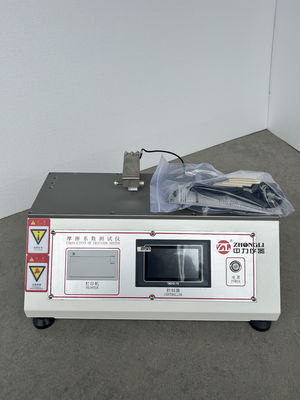

ASTM D1894 ISO 15359 COF Coefficient of Friction Tester Plastic Film Cof Testing Machine Instrument
Product Description:
The friction coefficient meter is based on GB 10006 national standard and is suitable for measuring plastic film and sheet, rubber, paper, cardboard, woven bag, fabric style, metal material composite tape for communication cable, conveyor belt, wood, coating, brake pad, Static friction coefficient and dynamic friction coefficient when sliding materials such as wipers, shoe materials, and tires slide. By measuring the slippery nature of the material, it is possible to control the quality of the production process and to meet the product requirements. In addition, it can also be used for the measurement of the slip properties of daily necessities such as cosmetics and eye drops.
Standard:
GB 10006, GB/T 17200, GB/T22895, ISO 8295, ASTM D1894, TAPPI T816
Basic Application:
1. Film Suitable for static friction coefficient and dynamic friction coefficient test of plastic film and sheet
2. Paper Suitable for dynamic and static friction coefficient test of paper and cardboard
3. textiles, non-woven fabrics, woven bags Suitable for textiles, non-woven fabrics, woven bags, static friction coefficient and dynamic friction coefficient test.
4.rubber is suitable for rubber static friction coefficient and dynamic friction coefficient test.
5. aluminum foil, aluminum foil composite film, metal products Suitable for aluminum foil, aluminum foil composite film, metal products, static friction coefficient and dynamic friction coefficient test.
6. Printed matter Suitable for static friction coefficient and dynamic friction coefficient test of printed matter.
Technical parameters:
| Force Measuring Range |
0~3 N |
| Measurement Accuracy |
0.001N |
| Slider Stroke |
150 mm |
| Slide Mass |
200g |
| Test Speed |
100mm/min |
| Test Conditions |
Standard test environment |
| Host Size |
520 mm×330 mm×230mm (L×B×H) |
| Electricity Source |
AC 220V±10% 50Hz |
| Net Weight |
35Kg |
